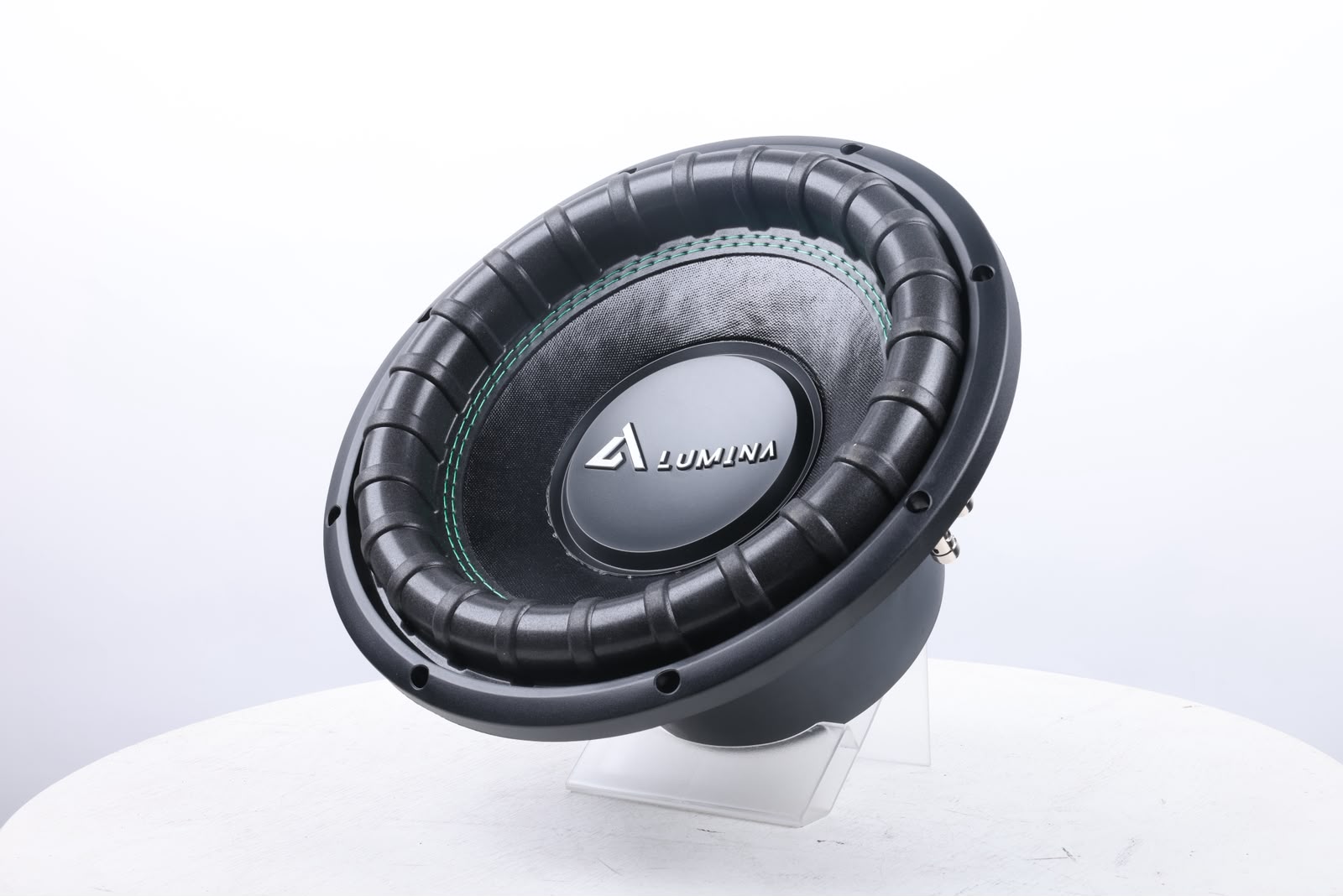

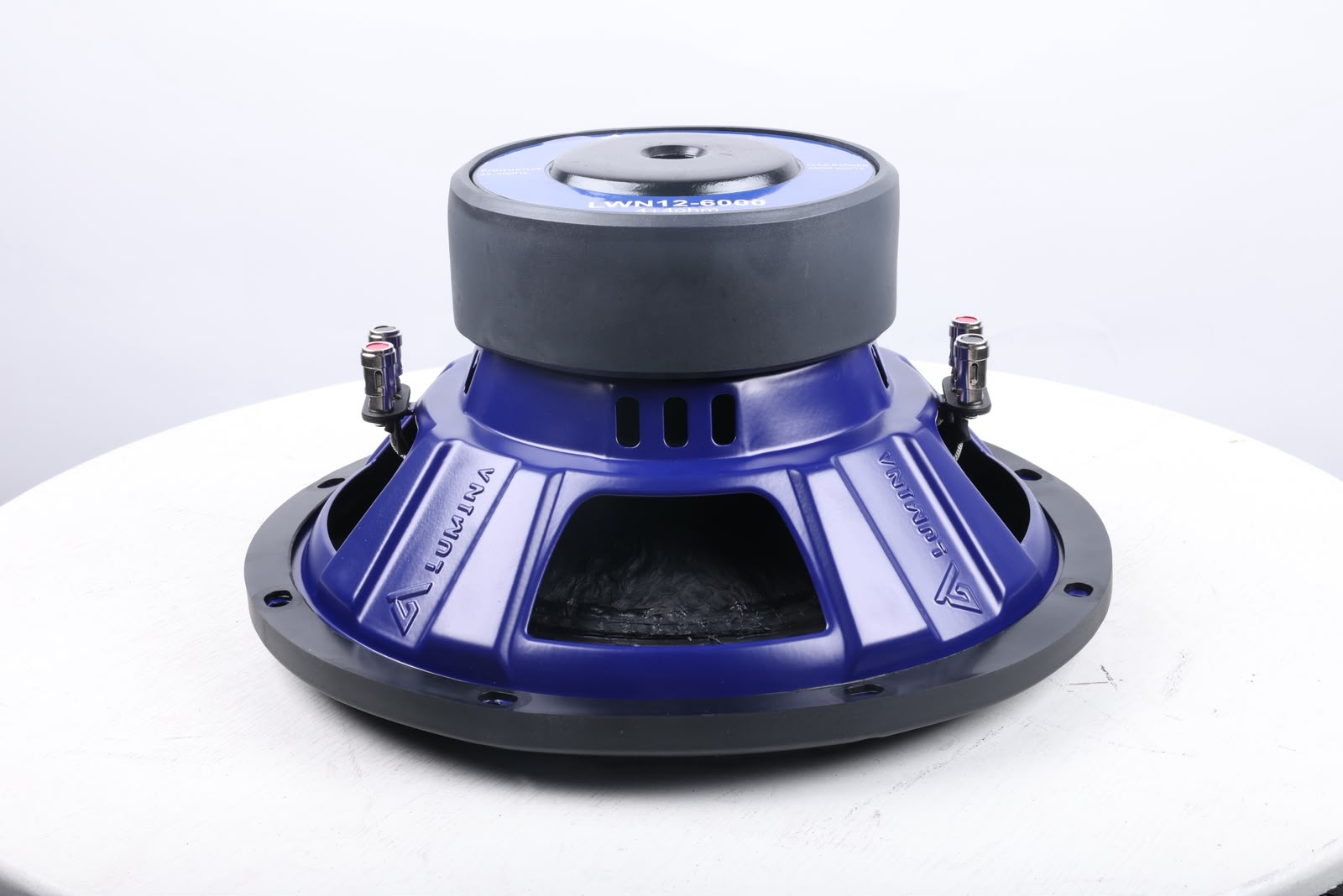

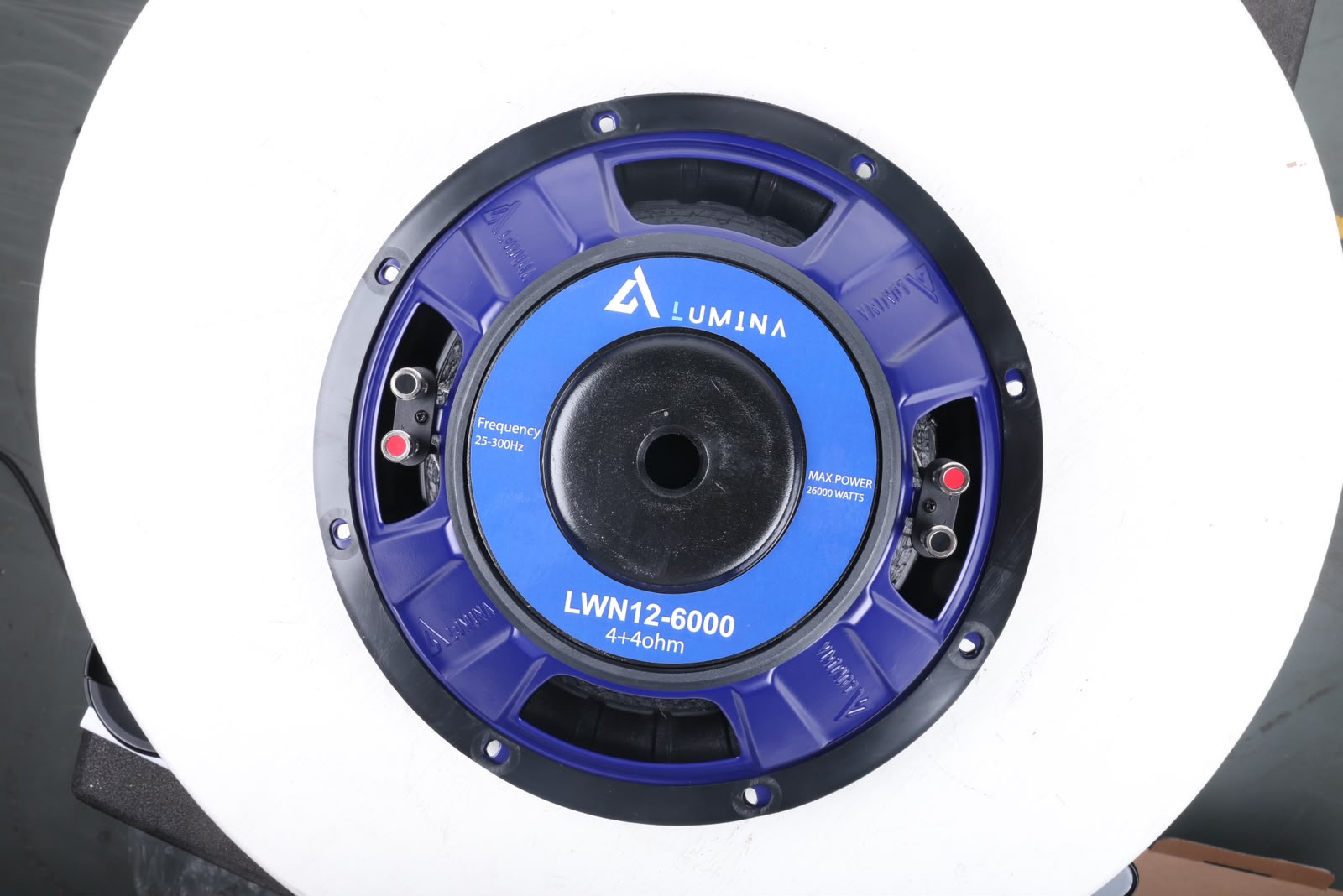

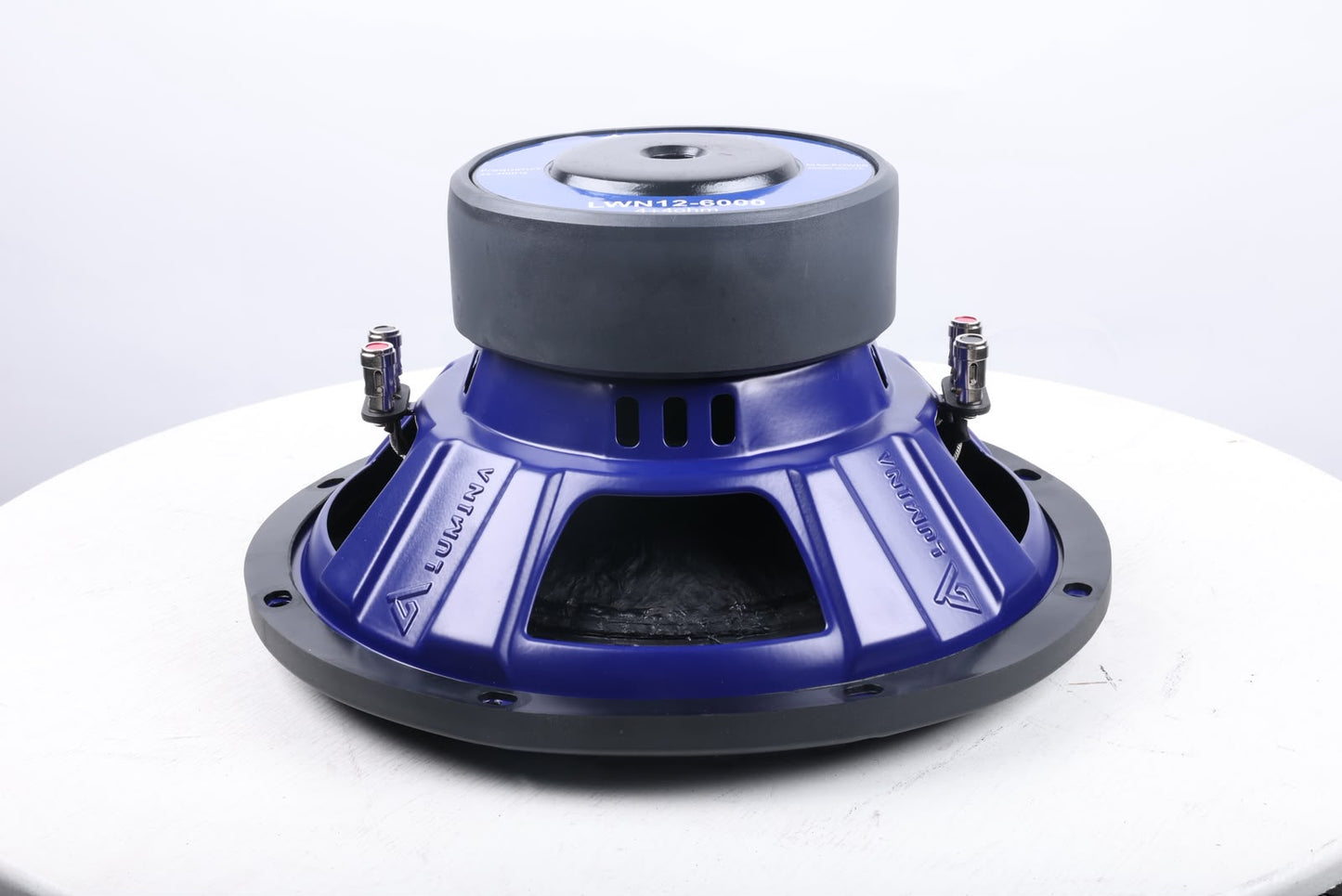

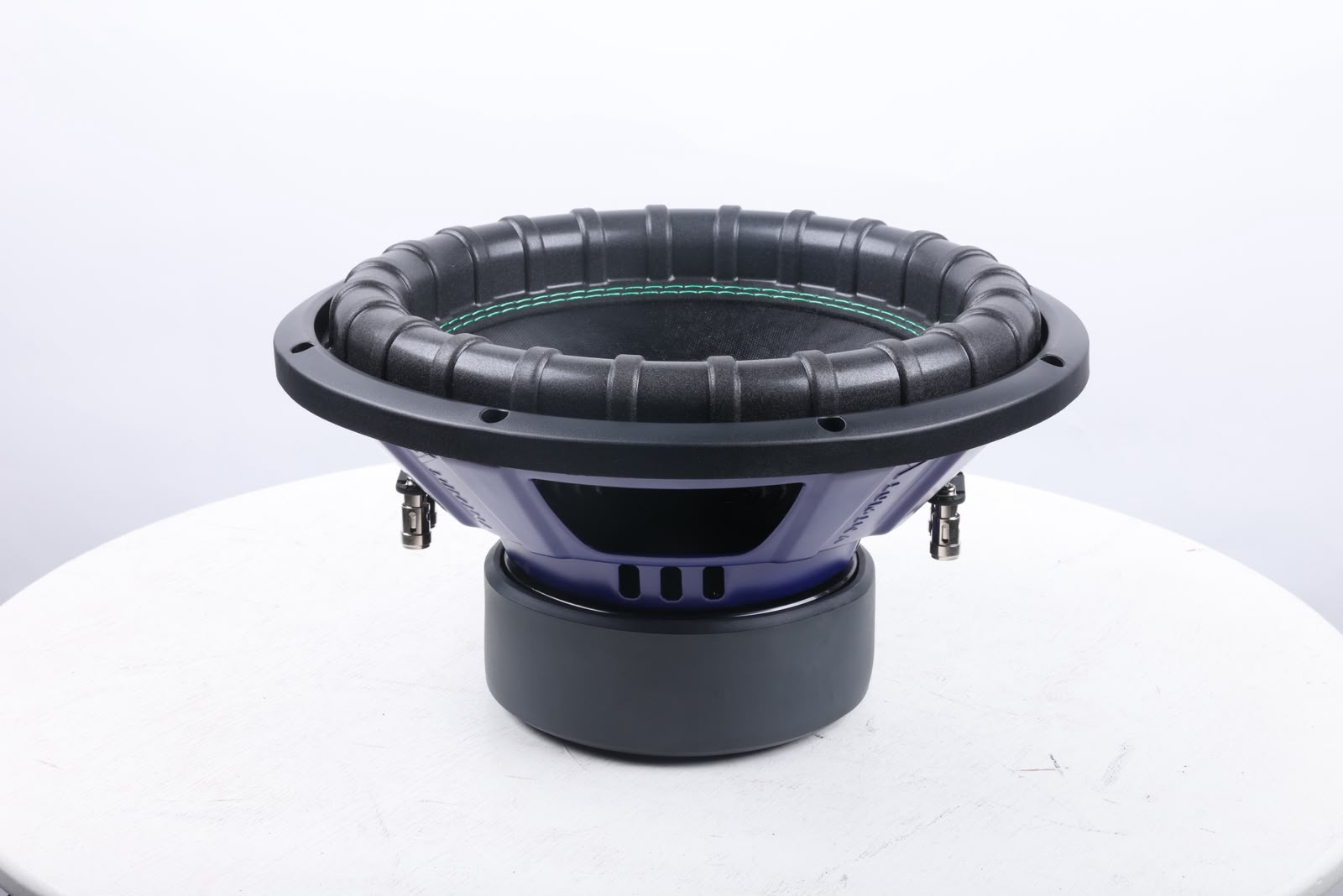

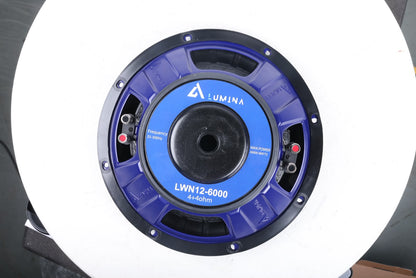

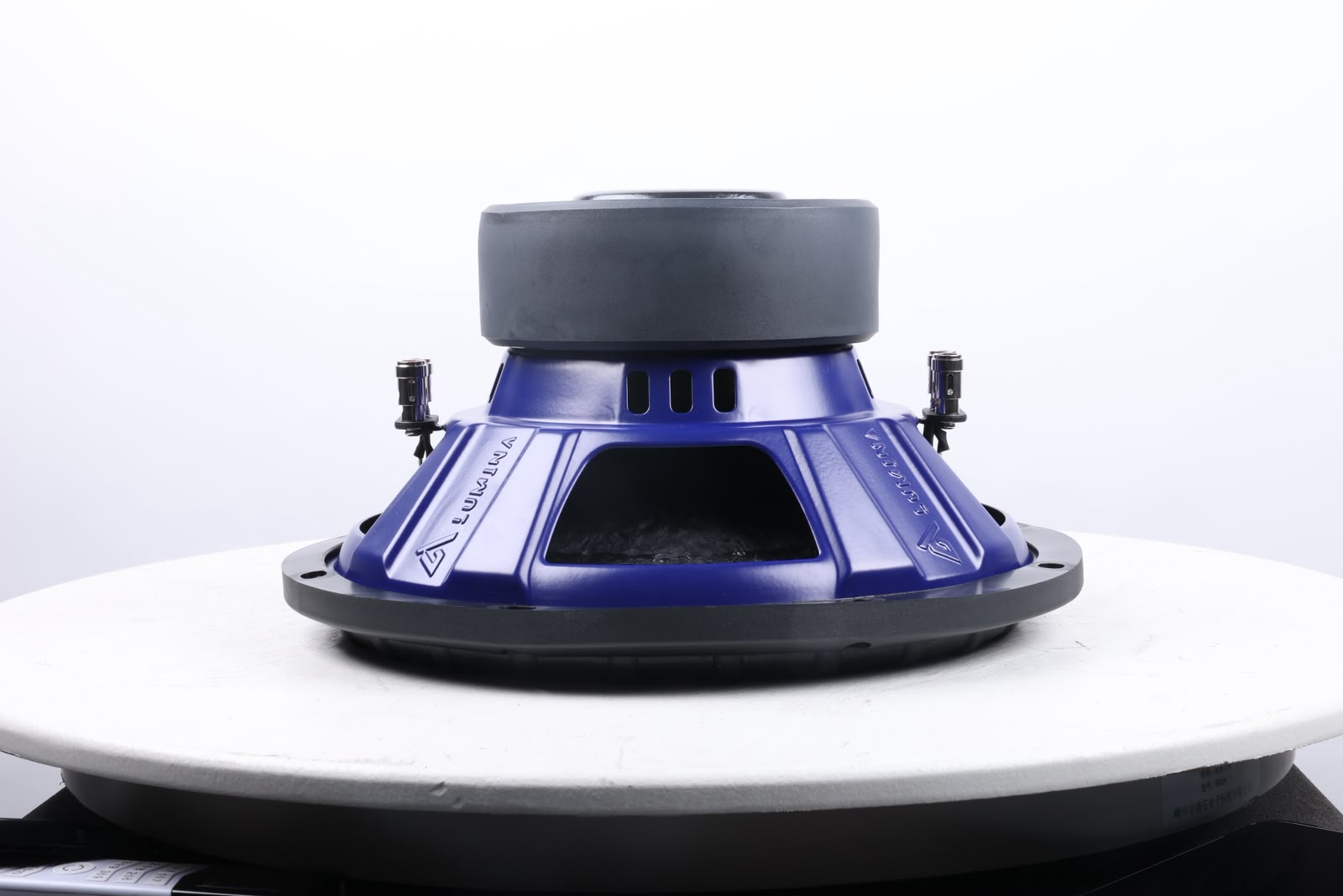

Lumina Audio Shaw Series 12" 26000W Subwoofer - LWN12-6000.

Unleash powerful, ground-shaking bass with the Lumina Audio Shaw Series 12" Subwoofer. Designed for car audio enthusiasts who demand exceptional low-frequency performance, the LWN12-6000 combines robust construction with advanced engineering to deliver deep, accurate bass reproduction across a wide frequency range.

Featuring a dual 4+4 ohm voice coil configuration and a high-efficiency 108oz magnet structure, this subwoofer provides installation flexibility and impressive bass output. The heavy-duty steel basket ensures structural rigidity under demanding conditions, while the 50mm voice coil offers reliable power handling and thermal stability for extended listening sessions.

With optimized Thiele/Small parameters and a low resonant frequency of 30Hz, the Shaw Series subwoofer is capable of producing deep, rich bass that enhances every genre of music. Whether installed in a sealed or ported enclosure, the LWN12-6000 is built to deliver the impact and performance serious audio enthusiasts expect.

Features
- Premium 12" Shaw Series car audio subwoofer
- 26000W maximum power output
- 400W RMS power handling
- Dual 4+4 Ohm voice coil design
- Wide frequency response from 20Hz to 300Hz
- High sensitivity rating of 87dB
- 50mm high-temperature voice coil
- Massive 108oz magnet structure for enhanced motor strength
- Heavy-duty steel basket construction
- Deep bass extension with 30Hz resonant frequency
- Suitable for sealed and ported enclosure applications
- Designed for powerful and accurate low-frequency reproduction

Specifications
- Model: LWN12-6000
- Power Handling
- Maximum Power: 26000W
- RMS Power: 400W
- Electrical Specifications
- Impedance: Dual 4+4 Ohm
- Sensitivity (SPL): 87dB
- Frequency Performance
- Frequency Response: 20Hz - 300Hz
- Resonant Frequency (Fs): 30Hz

Thiele/Small Parameters
- Qms: 4.42
- Qes: 0.53
- Qts: 0.47

Construction
- Voice Coil Diameter: 50mm
- Magnet Weight: 108oz
- Basket Material: Steel

Dimensions
- Overall Diameter: 317mm
- Mounting Diameter: 280mm
- Overall Depth: 187mm
- Mounting Depth: 144mm

What's in the box
1 x Lumina Audio Shaw Series 12" 26000W Subwoofer - LWN12-6000.
